Minglei German standard aluminum tilt and turn passive window triple pane windows

Minglei German standard aluminum tilt and turn passive window triple pane windows

Parameter
Related products

Parameter

Minglei presents their innovation latest in window technology because of the German aluminum standard and turn window pane passive. This system will surely make a direct effect with relation to do something your self while offering an entire brand new, modern browse any household. Minglei's German aluminum standard and turn window pane passive are particularly well suited to those looking for a practical yet screen replacement fashionable. Constructed from top-notch aluminum structures, these windows are created to last, ensuring durability maximum. The triple-pane glass composition will be the celebrity probably genuine of show. This combination it is energy exclusive, making these windows eco-friendly and perfect for reducing energy bills. The triple-pane glass makes the windows soundproof, perfect for noisy areas. Just what sets these windows aside from standard individuals may be the innovative tilt and turn function, that offer simple and easy ventilation easy is convenient. The windows are tilted inwards to enable venting to the room, causing ab muscles very easy to keep a little bit of dessert fresh through your household. Whenever entirely available, the windows offer excellent venting, allowing environment this might be fresh circulate through the spot. The German aluminum this can be standard and turn window pane passive are for sale in plenty of numerous sizes and generally speaking in many cases are customizable, providing homeowners with endless design alternatives. Additionally, the windows are available in an array of colors to allow for any home's outside design. These windows are quite simple to set up, reducing time enough power necessary to correctly fit them. Minglei guarantees their products or services and solutions and also you will be supplying a guarantee in terms of their German aluminum standard and turn window pane passive, making sure they truly are enduring, energy-efficient, and created to endure. Minglei's German aluminum this can be standard and turn window pane passive could be the addition perfect nearly every home. They are energy-efficient, soundproof, fashionable, a piece of cake to incorporate, and practical. Buying these windows is clearly an option very is smart will surely repay to the run this will be very long. Trust Minglei due to their revolutionary display solutions, as well as your household get greener and much more comfortable with every moving day

Product details

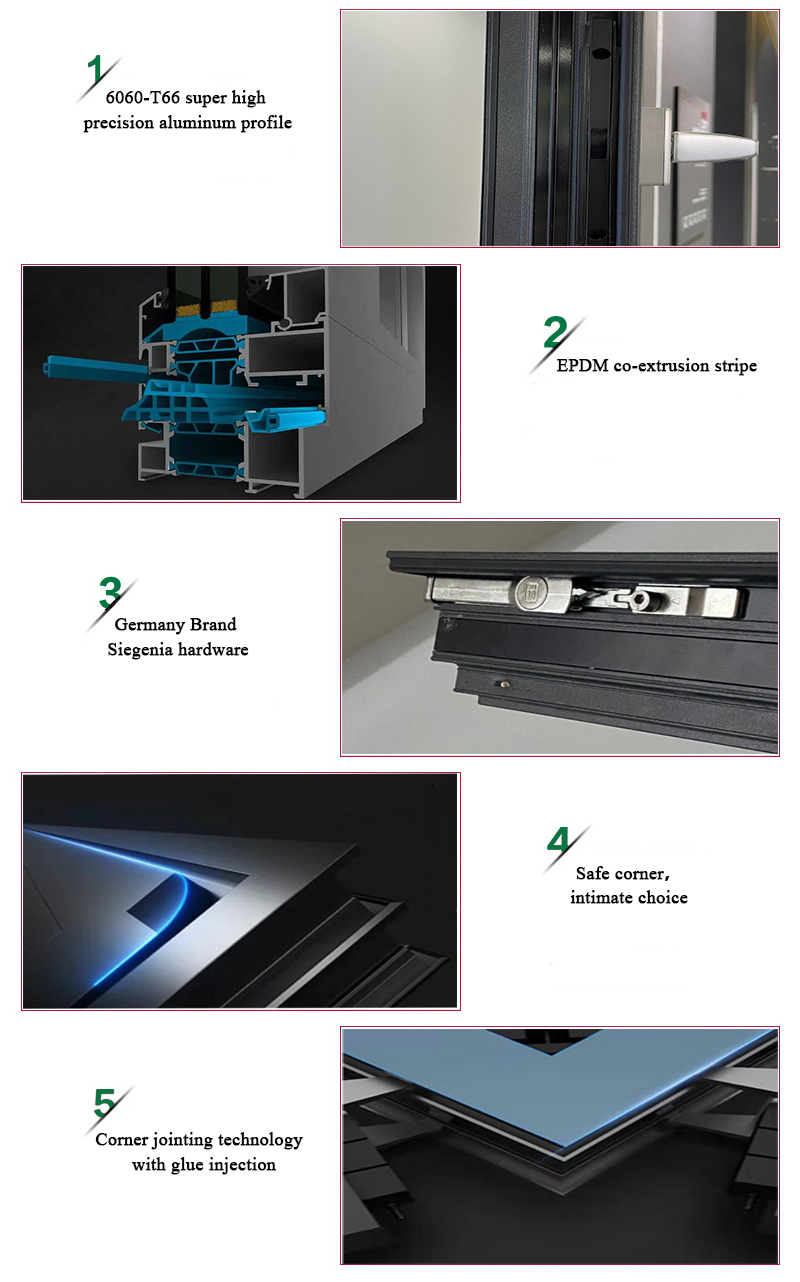

1. Profile	European standard 6060-T66 super high precision aluminum profile
2. Profile brand	Germany Schuco system, Domestic system
3. Surface finish	Powder coating, Anodized, Woodgrain transfer, Elestrophoresis, Fluorocarbon paint.
4. Profile thickness	1.8 mm-3.0mm,

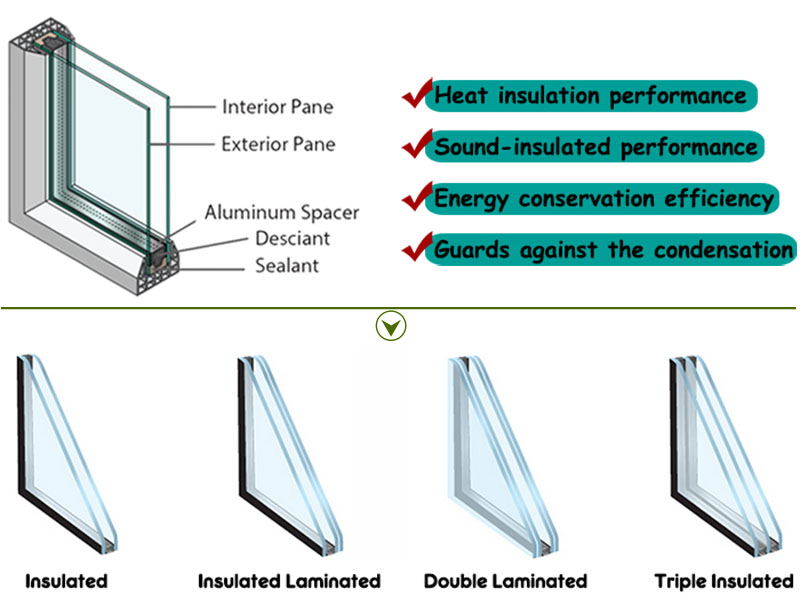

5. Glass option	Double insulated glass: 5mm/6mm+12A/15A+6mm, warm edge spacer low-e & argon gas optional Triple insulated glass: 5mm low-e+ 12Ar/16Ar+5mm low-e+12Ar/16Ar+5mm, warm edge spacer & triple silver low-e optional Laminated insulated glass: 5mm+ 0.76PVB/ 1.14PVB+5mm+12A+5mm, clear, tinted, reflective, tempered optional
7. Hardware	Germany imported Schuco brand, Siegenia, G-U, Hoppe, Italy Giesse, Sonbinco
8. Seal & strip	Germany Orginally imported EPDM Rubber sealing strip, black or grey color
9. Screen optional	Nylon/fiberglass mesh material, Stainless steel mesh screen etc

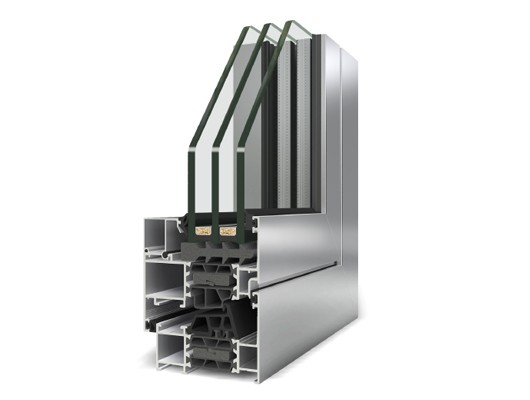

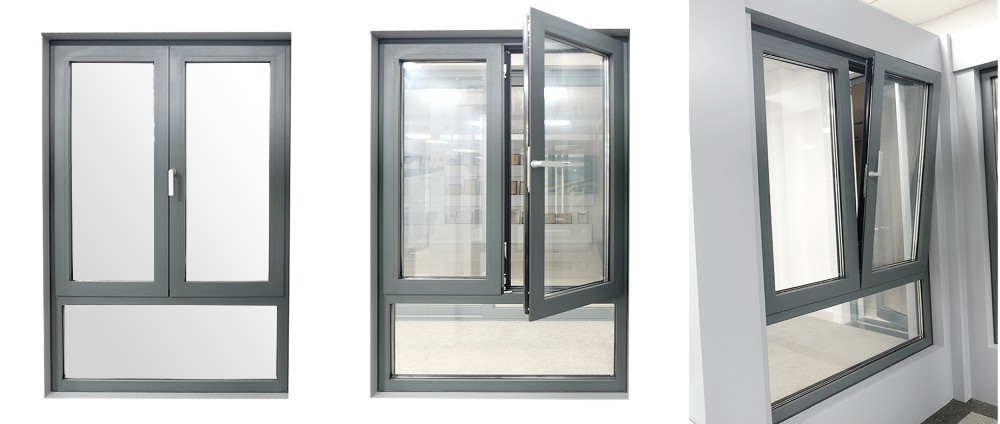

Minglei German standard aluminum tilt and turn passive window triple pane windows details

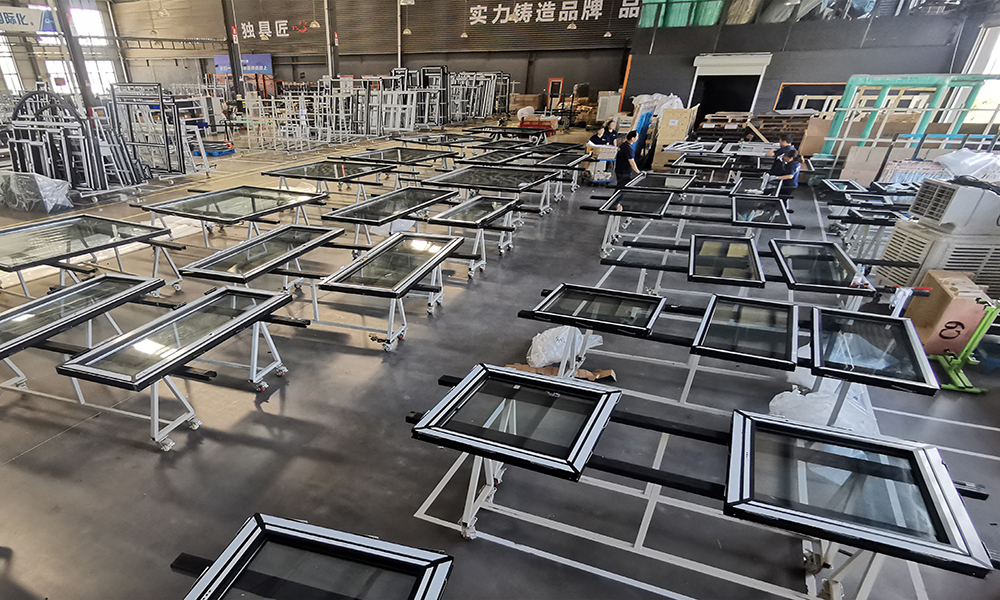

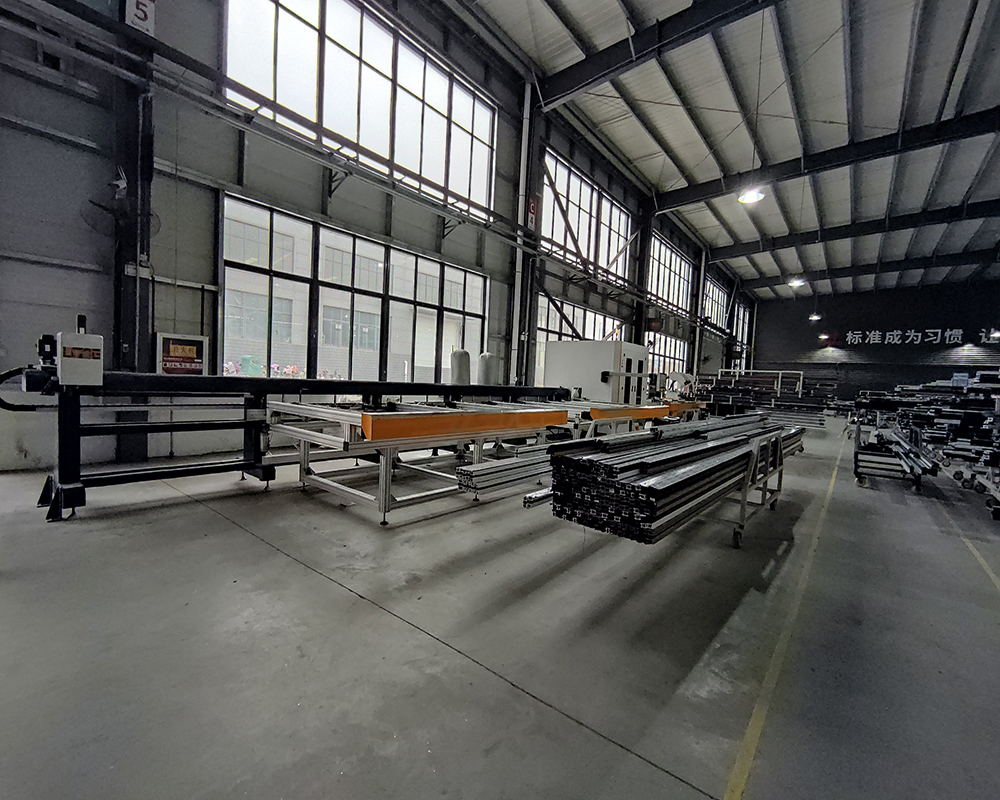

Minglei German standard aluminum tilt and turn passive window triple pane windows manufacture

Minglei German standard aluminum tilt and turn passive window triple pane windows supplier

Minglei German standard aluminum tilt and turn passive window triple pane windows factory

Domestic system thermal insulation aluminum window

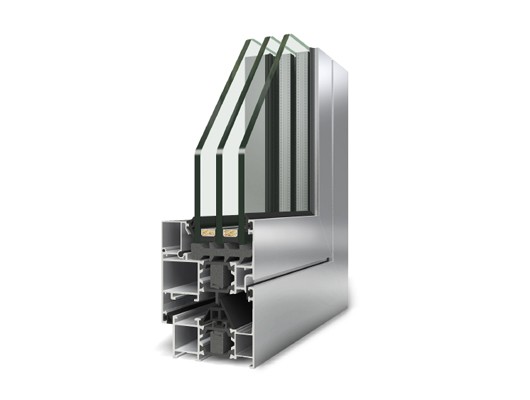

ML 70 series high thermal insulation

ML 75 series high thermal insulation

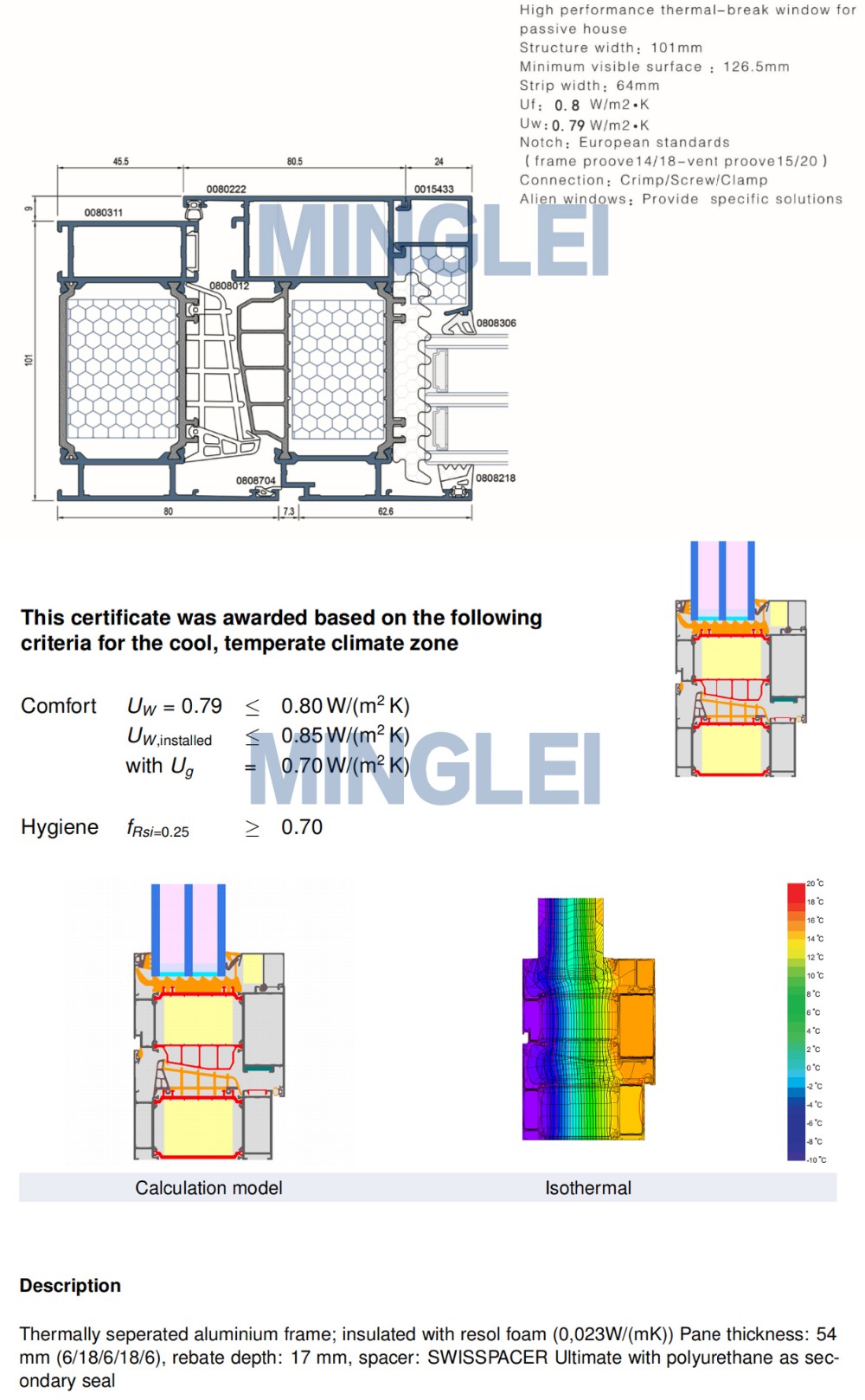

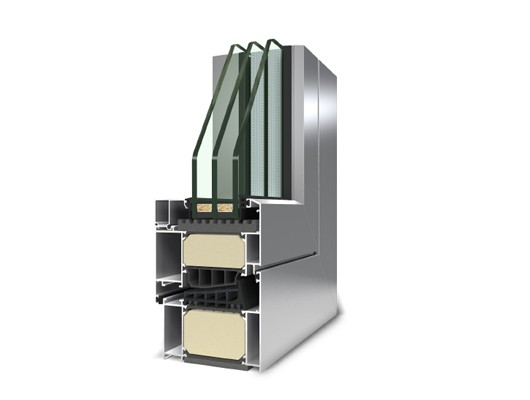

ML101 Series Passive house max insulation

Product performance	ML101 Series	ML 75 series	ML 70 series
European U-Value Metric/SI	0.79 W/m²K	1.3 W/m²K	1.4 W/m²K
American U factor U. S. /I-P	0.14	0.23	0.24
Rw dB	40	38	38
Wind load resistance Pa	≥ 5000 Pa	≥ 5000 Pa	≥ 5000 Pa
Water tightness Pa	≥ 700 Pa	≥ 700 Pa	≥ 700 Pa
Air infiltration/exfiltration	q1≤0.26m³/m·h;	q1≤ 0.36m³/m·h; q2≤ 0.71m³/m²·h	q1≤ 0.42m³/m·h; q2≤ 0.77m³/m²·h

For years, Aluminum window have been specified by architects and builders for their overall strength and lasting value. Because of their rigidity, durability and narrow frames, aluminum windows can be configured into a wide variety of combinations that maximize views. Aluminum windows also are popular because of their low maintenance. They won't rust or rot. You don't have to paint them. And they're available with tough anodized or baked-on finishes.

Packing & Delivery

Related products

Our company

Hangzhou Minglei Industry Co Ltd which have been specialized in windows and doors for over a decade, exported to more than 30 countries, 70% of sales to the USA, Canada, Europe, and Australia markets. Based on advanced & exquisite manufacturing technique, and abundant product application and service experience, We can offer extensive range of windows and doors products, which can meet EU CE and USA ASTM standards on windows & doors technologies. Minglei endeavor to supply superior quality and innovative windows and doors to meet every client's needs and expectation with timely delivery. Adhering to the customer-centric business philosophy, quality first principle, Minglei will always be your reliable supplier and business partner you can do trust

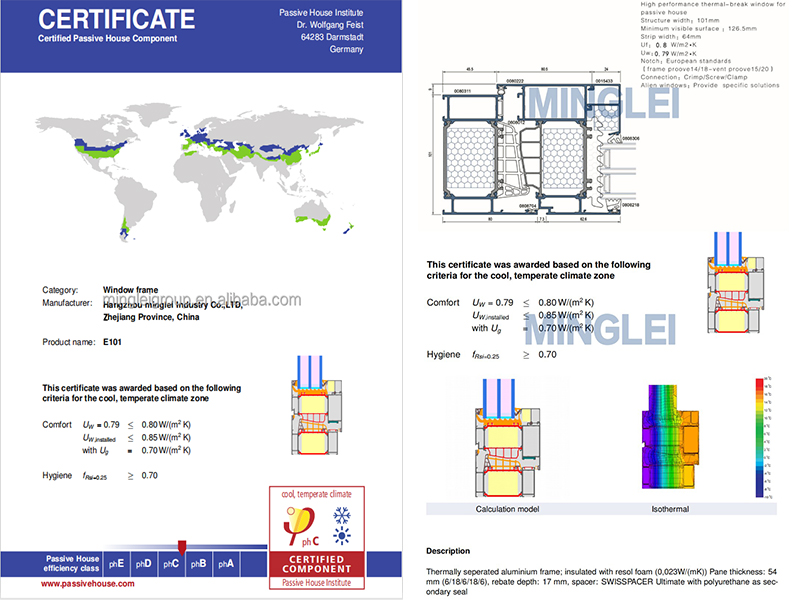

Certifications

Minglei Show Case

FAQ

Q: Are you a trading company or a manufacturer? A: We are manufacturer and have our own trading company, which engaged in high quality windows & doors manufacturing for domestic & abroad market. Q: What is your lead time? A: 20-35 days upon of deposit received and shop drawing confirmed (We arrange shop drawing before manufacturing to double confirm all the windows details). Q: What is the standard size and design of your windows and doors? A: As windows and doors are customized products. we manufacture according to your specific dimension special requirements. And we also have engineers to give improvement suggestions. Q: What about your window systems? A: We use Germany high insulation system with thermal break technology. Q: Will we need to install the glass (onsite glazed) or do your windows come with the glass installed? A: We will install glass at factory based on windows/doors dimension to make sure they can be safe during transportation and it is easy for our buyer to install the whole windows/doors. Onsite glazed are recommended for big sized products. Q: Do you know what is a U-Factor/Value? The U-factor/Value measures how well a fenestration product prevents heat from escaping a home or building. The lower the U-Factor/Value is, the better a product is at keeping heat inside the building, thus is a better insulator. The most energy efficient window we made is Germany PHI certified passive housing standard window and door, which Uw is 0.79 W/ m2* K(metric), turns to U factor is 0.14 ( imperial). Q: What is Solar Heat Gain Coefficients? That measures the fraction of solar energy transmitted and tells you how well the product blocks heat coming into the house caused by sunlight. SHGC is measured on a scale of 0 to 1; values typically range from 0.25 to 0.80. The lower the SHGC, the more a product is blocking solar heat gain. Blocking solar heat gain is particularly important during the summer season in warmer climates. By contrast, people in cooler climates may want solar heat gain during the cold winter months to lessen the cost of heating the home. Q: What is your warranty? What do we do in case of problems? A: 10 years quality warranty is provided, including frame unfading or peel-off, hardware and accessories working properly under correct operation. 10 years warranty for German hardware. In case of our quality problem, we will provide replacement by international courier. Immediate delivery of replacement parts with available in stock, and if not stocking, the time should be depending on material ordering time which is normally 10-15 days. Q: What kind of service can I get from you? A: We are able to provide the engineering as well as supervising service to guide installation our windows and doors.
